PPR pipe PN10 SDR 11

Specifications

Material: PP-R

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 11/S 5

Color: Green with laser labeling system.

Form Suuplied: 4 meter straight length, also in coils for some diameters

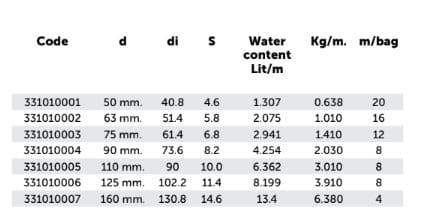

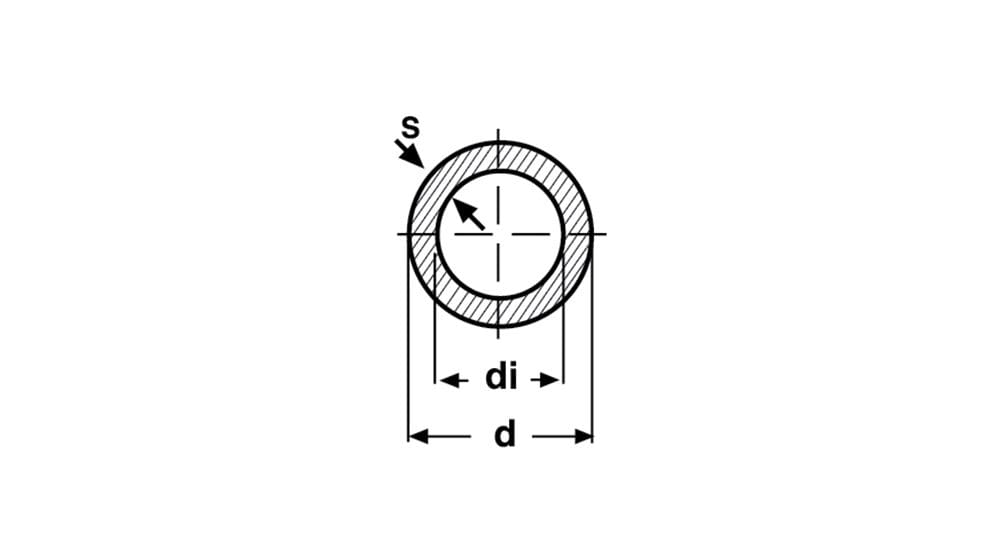

code d di s water content lit\m kg\m. m\bag
331010001 50mm. 40.8 4.6 1.307 0.638 20
331010002 63mm. 51.4 5.8 2.075 1.010 16
331010003 75mm. 61.4 6.8 2.941 1.410 12
331010004 90mm. 73.6 8.2 4.254 2.030 8
331010005 110mm. 90 10.0 6.362 3.010 8
331010006 125mm. 102.2 11.4 8.199 3.910 8
331010007 160mm. 130.8 14.6 13.4 6.380 4
