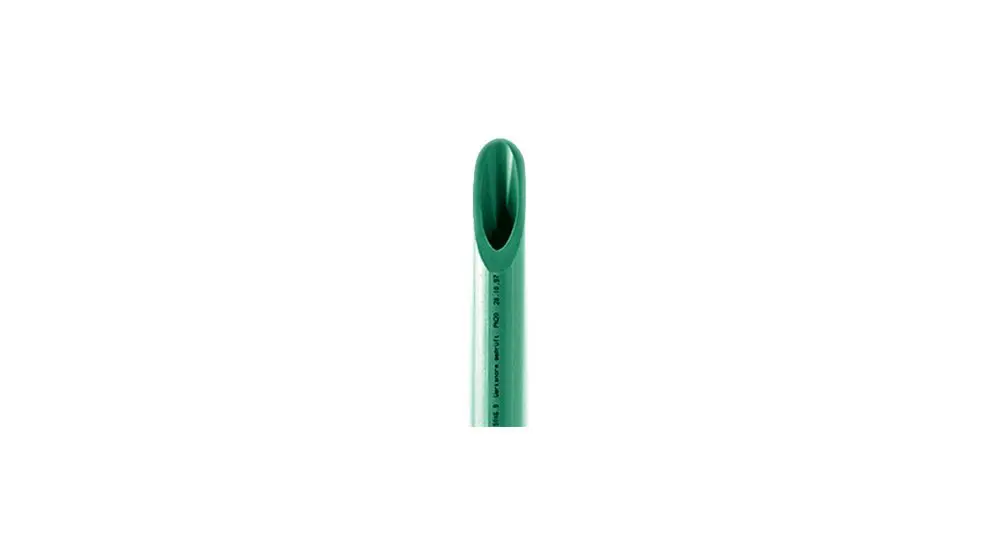

PP-R pipe PN16 SDR 7.4

Specifications

Material: PP-R

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: Green with laser labeling system.

Form Suuplied: 4 meter straight length, also in coils for some diameters

Download Catalog

20mm.

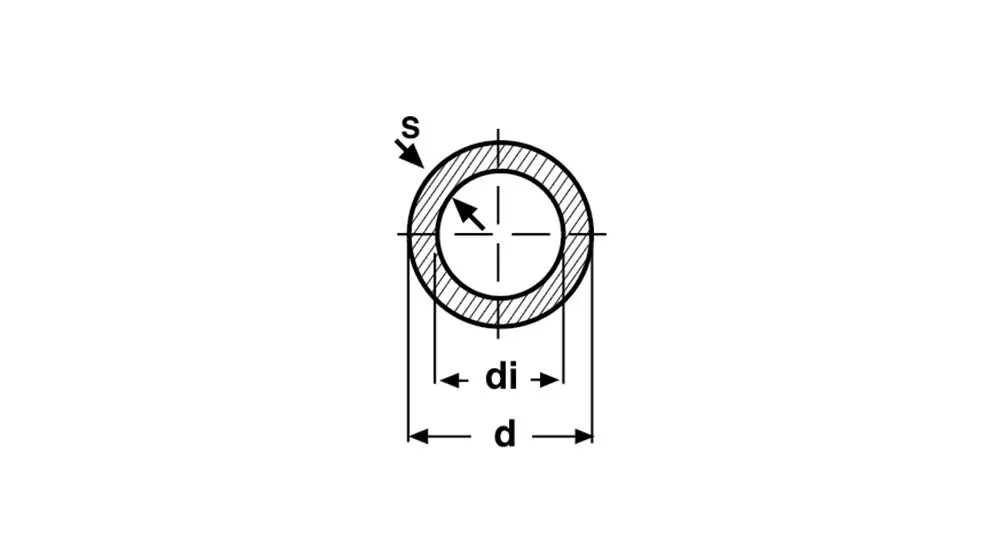

code	d	di	s	water content lit\m	kg\m.	m\bag
331021101	20mm.	14.4	2.8	0.163	0.148	160

25mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021102	25mm.	18	3.5	0.254	0.23	100

32mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021103	32mm.	23.2	4.4	0.415	0.37	60

40mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021104	40mm.	29	5.5	0.66	0.575	40

50mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021105	50mm.	36.2	6.9	1.029	0.896	20

63mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021106	63mm.	45.8	8.6	1.647	1.41	16

75mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021107	75mm.	54.4	10.3	2.323	2.01	12

90mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021108	90mm.	65.4	12.3	3.358	2.87	8

110mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021109	110mm.	79.8	15.1	4.999	4.3	8

125mm

code	d	di	s	water content lit\m	kg\m.	m\bag
331021110	125mm.	90.8	17.1	6.472	5.53	8

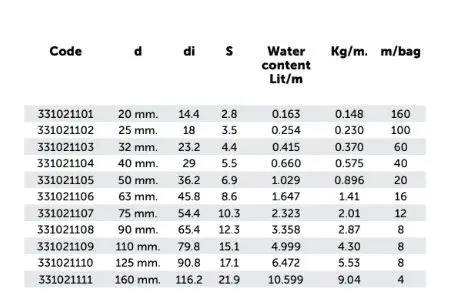

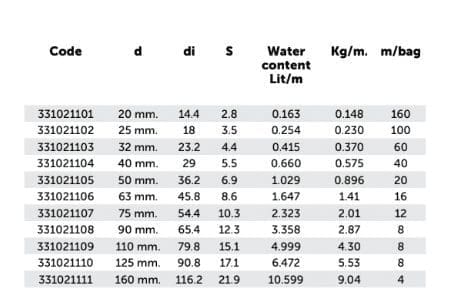

code	d	di	s	water content lit\m	kg\m.	m\bag
331021101	20mm.	14.4	2.8	0.163	0.148	160
331021102	25mm.	18	3.5	0.254	0.230	100
331021103	32mm.	23.2	4.4	0.415	0.370	60
331021104	40mm.	29	5.5	0.660	0.575	40
331021105	50mm.	36.2	6.9	1.029	0.896	20
331021106	63mm.	45.8	8.6	1.647	1.41	16
331021107	75mm.	54.4	10.3	2.323	2.01	12
331021108	90mm.	65.4	12.3	3.358	2.87	8
331021109	110mm.	79.8	15.1	4.999	4.3	8
331021110	125mm.	90.8	17.1	6.472	5.53	8
331021111	160mm.	116.2	21.9	10.599	9.04	4
