Multilayer pipes with fiber Reinforced UV in Black PN 20 SDR 6

Specifications

Material: PP-R with integrated fiber reinforced layer and external UV layer

Standard: DIN 80 77/ DIN8078, DIN EN ISO 15874

Product series: SDR6 / S2.5

Color: internal layer is green and outer layer is black. Pipe: black pipes with laser labelling system

Form Suuplied: 4 meters straight length

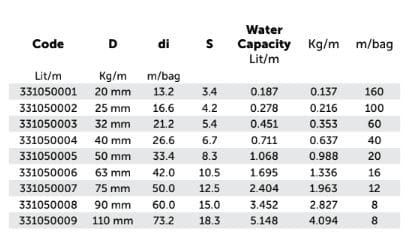

 code
lit/m
D
kg/m
di
m/bag
S Water Capacity
Lit/m
KG/m m/bag
331050001 20mm 13.2 3.4 0.187 0.137 160
331050002 25mm 16.6 4.2 0.278 0.216 100
331050003 32mm 21.2 5.4 0.451 0.353 60
331050004 40mm 26.6 6.7 0.711 0.637 40
331050005 50mm 33.4 8.3 1.068 0.988 20
331050006 63mm 42.0 10.5 1.695 1.336 16
331050007 75mm 50.0 12.5 2.404 1.963 12
331050008 90mm 60.0 15.0 3.452 2.827 8
331050009 110mm 73.2 18.3 5.148 4.094 8
