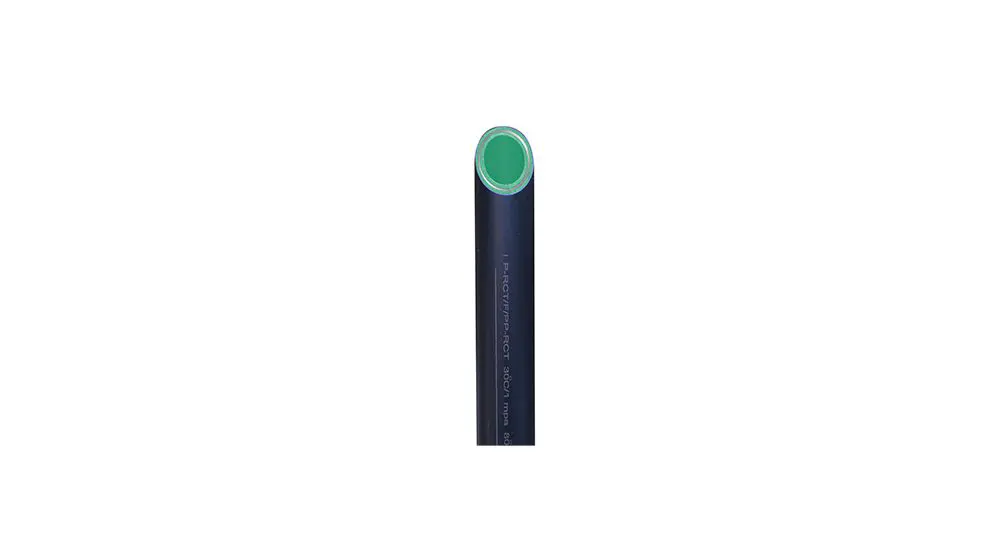

Multilayer pipes with Aluminum Reinforced UV in Black PN 20 SDR 6/s 2.5

Specifications

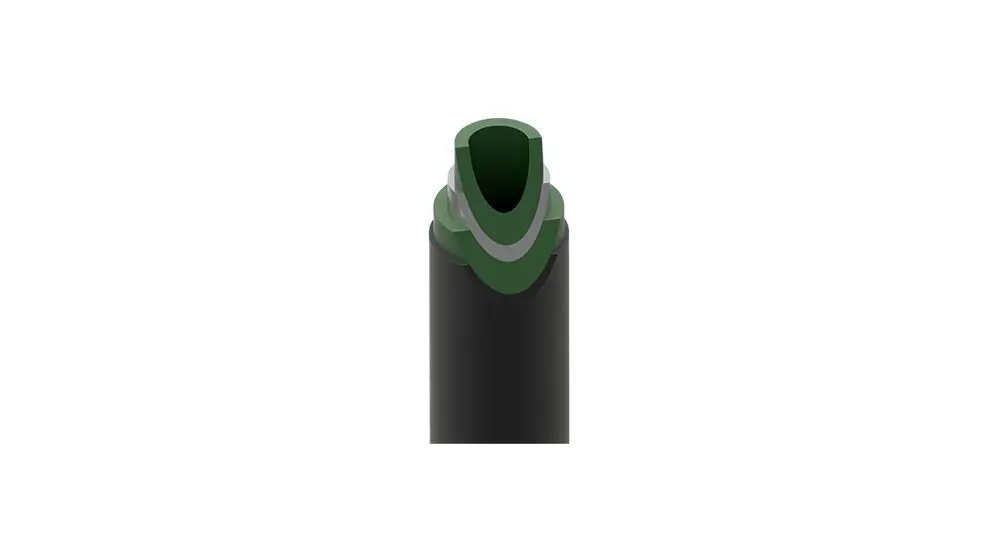

Material: PP-R with integrated Aluminum reinforced layer and external polypropylene layer

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 6/S 2.5

Color: internal layer is green and outer layer is black

Form Suuplied: 4 meters straight length

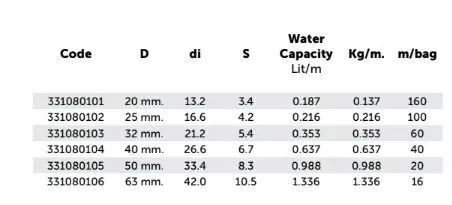

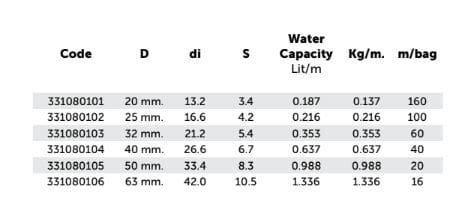

 code D di S Water Capacity Lit/m KG m/bag
331080101 20mm 13.2 3.4 0.187 0.137 160
331080102 25mm 16.6 4.2 0.216 0.216 100
331080103 32mm 21.2 5.4 0.353 0.353 60
331080104 40mm 26.6 6.7 0.637 0.637 40
331080105 50mm 33.4 8.3 0.988 0.988 20
33108106 63mm 42.0 10.5 1.336 1.336 16
