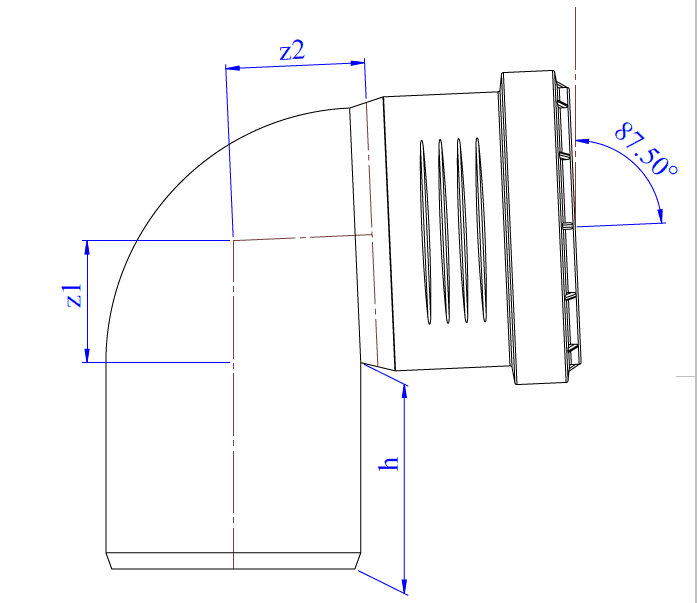

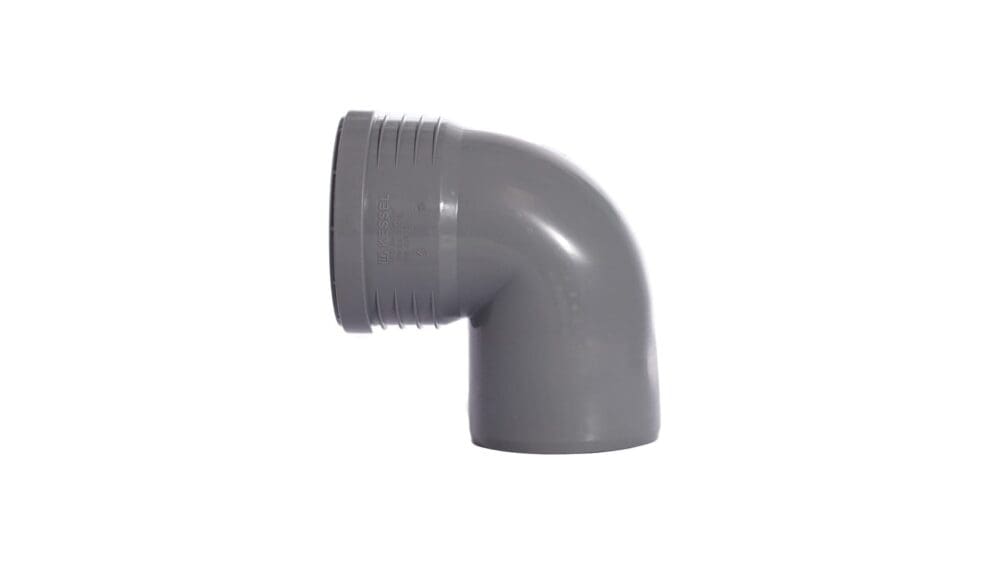

Bend 87.5°

Specifications

Download Catalog

32mm

Code	dn	z1	z2	h	kg
352020008	32	15	20	46	0.024

50mm

Code	dn	z1	z2	h	kg
352020002	50	22	37	56	0.067

63mm

Code	dn	z1	z2	h	kg
352020010	63	30	34	55	0.083

75mm

Code	dn	z1	z2	h	kg
352020003	75	30	44	63	0.118

110mm.

Code	dn	z1	z2	h	kg
352020004	110	47	66	78	0.282

160mm

Code	dn	z1	z2	h	kg
352020005	160	70	92	96	0.851

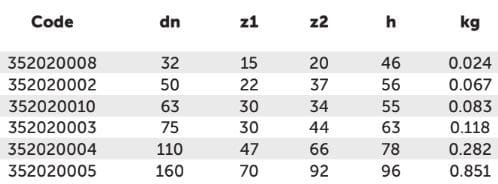

Code	dn	z1	z2	h	kg
352020008	32	15	20	46	0.024
352020002	50	22	37	56	0.067
352020010	63	30	34	55	0.083
352020003	75	30	44	63	0.118
352020004	110	47	66	78	0.282
352020005	160	70	92	96	0.851
