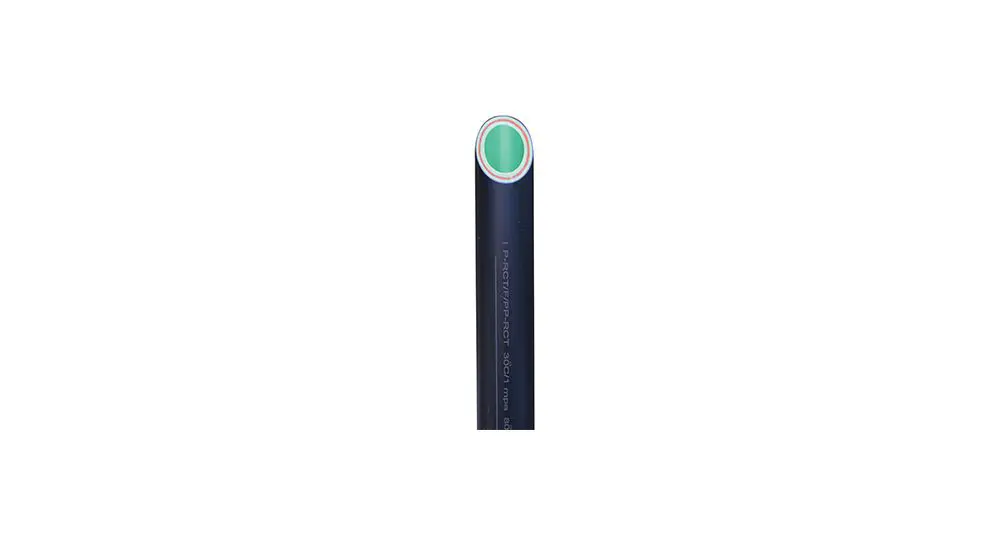

Schwarzes Faserrohr PN16 SDR 7.4

Specifications

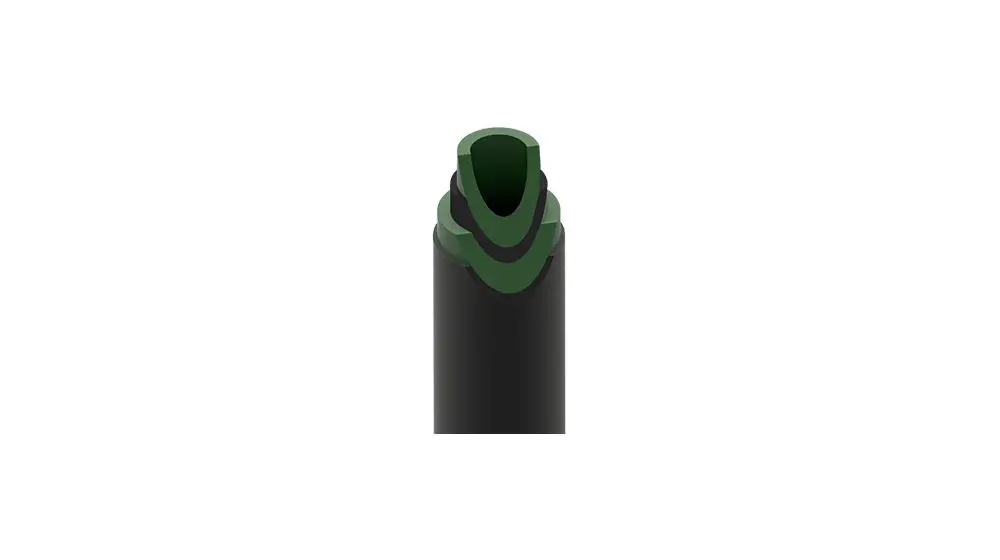

Material: PP-R with integrated fiber reinforced layer and external polypropylene layer

Standard: DIN 8077/DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/ S 3.2

Color: internal layer is green and outer layer is black

Form Suuplied: 4 meters straight length

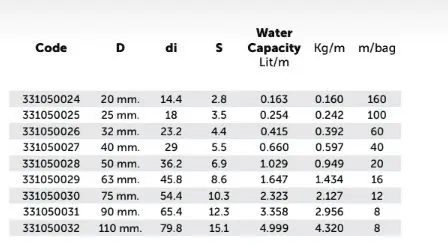

 code D di S Water Capacity Lit/m KG m/bag
331050024 20mm 14.4 2.8 0.163 0.160 160
331050025 25mm 18 3.5 0.254 0.242 100
331050026 32mm 23.2 4.4 0.415 0.392 60
331050027 40mm 29 5.5 0.660 0.597 40
331050028 50mm 36.2 6.9 1.029 0.949 20
331050029 63mm 45.8 8.6 1.647 1.434 16
331050030 75mm 54.4 10.3 2.323 2.127 12
331050031 90mm 65.4 12.3 3.358 2.956 8
331050023 110mm 79.8 15.1 4.999 4.32 8
