Tuyau en fibre noire PN 20 SDR 7.4

Specifications

Material: PP-R with integrated fiber reinforced layer and external polypropylene layer

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: internal layer is green and outer layer is black

Form Suuplied: 4 meter straight length, also in coils for some diameters

Download Catalog

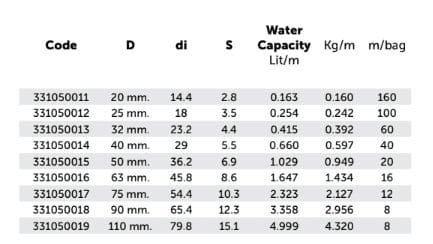

code	D	di	S	Water Capacity Lit/m	KG	m/bag
331050011	20mm	14.4	2.8	0.163	0.160	160
331050012	25mm	18	3.5	0.254	0.242	100
331050013	32mm	23.2	4.4	0.415	0.392	60
331050014	40mm	29	5.5	0.660	0.597	40
331050015	50mm	36.2	6.9	1.029	0.949	20
331050016	63mm	45.8	8.6	1.647	1.434	16
331050017	75mm	54.4	10.3	2.323	2.127	12
331050018	90mm	65.4	12.3	3.358	2.956	8
331050019	110mm	79.8	15.1	4.999	4.32	8
