مواسير فايبر اسود PN 20 SDR 7.4

مواصفات

Material: PP-R with integrated fiber reinforced layer and external polypropylene layer

Standard: DIN 8077/ DIN 8078, DIN EN ISO 15874

Product series: SDR 7.4/S 3.2

Color: internal layer is green and outer layer is black

Form Suuplied: 4 meter straight length, also in coils for some diameters

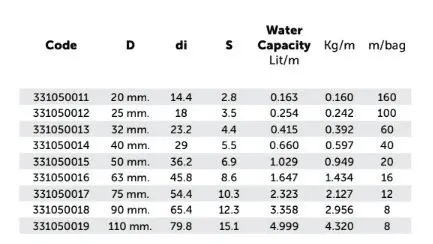

 code D di S Water Capacity Lit/m KG m/bag
331050011 20mm 14.4 2.8 0.163 0.160 160
331050012 25mm 18 3.5 0.254 0.242 100
331050013 32mm 23.2 4.4 0.415 0.392 60
331050014 40mm 29 5.5 0.660 0.597 40
331050015 50mm 36.2 6.9 1.029 0.949 20
331050016 63mm 45.8 8.6 1.647 1.434 16
331050017 75mm 54.4 10.3 2.323 2.127 12
331050018 90mm 65.4 12.3 3.358 2.956 8
331050019 110mm 79.8 15.1 4.999 4.32 8
